Daikin

Daikin air conditioning india pvt ltd, is a 100% subsidiary industries ltd,Japan global leader in the manufacturing of commercial use and residential air conditioning systems,backed by the superior technology ,the organization offers a wide range of energy efficient ac solutions to the Indian customers.It has been successfully offering premium air conditioning solutions in the Indian market for large scale projects robust growth is forecasted in indias airconditioning market

		1.0Ton	1.5Ton	1.8 Ton

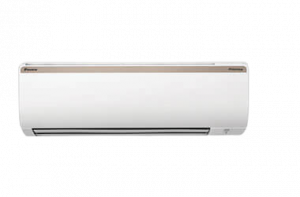

Model Name	Indoor Unit Outdoor Unit	FTKL35TV16WC RKL35TV16WCCL	FTKL50TV16VC/F RKL50TV16VC/F	FTKL60TV16UC RKL60TV16UC
Power Supply		1 50Hz 230V (220-240V)	1 50Hz 230V (220-240V)	1 50Hz 230V (220-240V)
	Power Supply intake	Out Door Unit	Out Door Unit	Out Door Unit
Cooling Capacity Rated Full/Half (min~max)	KW	3.52/1.76 (1.07~3.7)	5.0/2.5 (1.75~5.2)	6.0/3.0 (2.0~6.0)
Cooling Capacity Rated Full/Half (min~max)	Btu/h	12000 / 6000 (3650~12600)	17100/8550 (6000~17700)	20500/10250 (6800~20500)
Power Consumption Rated Full/Half (min~max)	W	1200 / 385 (210 – 1200)	1670/557 (375~1750)	1950/685 (495-1950)
Annual Power Consumption	KWH	682.27	969.25	1163.61
ISEER/ ISEER RANK	WH/WH	3.99/3*	3.99/3*	3.99/3*
Voltage Range	V	160-265	160-265	160-265
Operating Current (Cooling)	A	5.43	7.41	8.65

		1.0Ton	1.5Ton	1.8 Ton
Model Name	Indoor Unit Outdoor Unit	FTKM35TV16WC RKM35TV16WC	FTKM50TV16VC FTKM50TV16VF RKM50TV16VC RKM50TV16VF	FTKM60TV16UC RKMG60TV16UC
Power Supply		1 50Hz 230V (220-240V)	1 50Hz 230V (220-240V)	1 50Hz 230V (220-240V)
	Power Supply intake	Out Door Unit	Out Door Unit	Out Door Unit
Cooling Capacity Rated Full/Half (min~max)	KW	3.52/1.76 (1.75~4.0)	5.0/2.5 (1.75~5.4)	6.0/3.0 (2.5~6.7)
Cooling Capacity Rated Full/Half (min~max)	Btu/h	12000 / 6000 (6000~13600)	17100/8550 (6000~18500)	20500/10240 (8500~22900)
Power Consumption Rated Full/Half (min~max)	W	1010 / 330 (330 ~ 1010)	1415 / 475 (375 ~ 1650)	1665 / 580 (350 ~ 2100)
Annual Power Consumption	KWH	579.81	824.08	988
ISEER/ Star Rating	WH/WH	4.70 / 5*	4.70 / 5*	4.70 / 5*
Voltage Range	V	160-265	160-265	160-265
Operating Current (Cooling)	A	4.67	6.27	7.4

		1.0Ton	1.5Ton	1.8 Ton
Model Name	Indoor Unit Outdoor Unit	FTKT35TV16WC RKT35TV16WC	FTKT50TV16VC RKT50TV16VC	FTKT60TV16UC RKT60TV16UC
Power Supply		1 50Hz 230V (220-240V)	1 50Hz 230V (220-240V)	1 50Hz 230V (220-240V)
	Power Supply intake	Out Door Unit	Out Door Unit	Out Door Unit
Cooling Capacity Rated Full/Half (min~max)	KW	3.52/1.76 (1.07~3.7)	5.28/2.64 (1.75~5.7)	6.2/3.1 (1.75~6.5)
Cooling Capacity Rated Full/Half (min~max)	Btu/h	12000 / 6000 (3650~12600)	18000/9000 (6000~19500)	21200/10600 (6000~22200)
Power Consumption Rated Full/Half (min~max)	W	1200 / 385 (210 – 1200)	1790/582 (370-1950)	1970/722 (350-2100)
Annual Power Consumption	KWH	682.27	1024.93	1202.77
ISEER/ Star Rating	WH/WH	3.99 / 3*	3.99 / 3*	3.99 / 3*
Voltage Range	V	160-265	160-265	160-265
Operating Current (Cooling)	A	5.43	7.86	8.67

		1.0Ton	1.5Ton	1.8 Ton

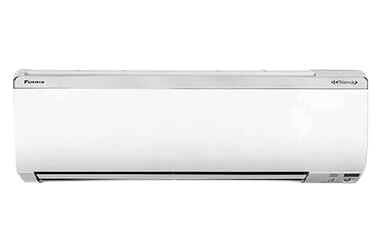

Model Name	Indoor Unit Outdoor Unit	FTKG35TV16W RKG35TV16W	FTKG50TV16U RKG50TV16U	FTKG60TV16U RKG60TV16U
Power Supply		1 50Hz 230V (220-240V)	1 50Hz 230V (220-240V)	1 50Hz 230V (220-240V)
	Power Supply intake	Out Door Unit	Out Door Unit	Out Door Unit
Cooling Capacity Rated Full/Half (min~max)	KW	3.5/1.75 (1.75~4.0)	5.0/2.5 (2.5~5.7)	6.0/3.0 (2.5~6.7)
Cooling Capacity Rated Full/Half (min~max)	Btu/h	11900 / 5970 (6000~13600)	17100/8500 (8500~19400)	20500/10240 (8500~22900)
Power Consumption Rated Full/Half (min~max)	W	999 / 330 (330 – 999)	1415/475 (475-1750)	1665/580 (580-1665)
Annual Power Consumption	KWH	577	824	989
ISEER/ Star Rating	WH/WH	4.70 / 5*	4.70 / 5*	4.70 / 5*
Voltage Range	V	160-265	160-265	160-265
Operating Current (Cooling)	A	4.67	6.37	7.4

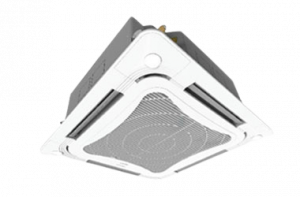

Model Name	Indoor Unit	FCVF18ARV16
Model Name	Outdoor Unit	RGVF18ARV16
Remote	Wireless	BRC52B62
Remote	Wired	BRC51A62
Panel Code	Model Number	BC50F3XW6
Nominal Cooling Capacity	Tonnage	1.5
	Btu/hr	18084
	KW	5.3
Nominal Total Input Power (Cooling)	W	1536
Annual Power Consumption	KWH	1189.03
ISEER	W/W	3.45
BEE Star Level		2
Power Source	V/PH/Hz	230V/1/50
Refrigerant		R-32

Daikin

HW

Cassette

Ductable

VRV

Contact Inform

About

Products

FTKL MODEL

FTKM MODEL

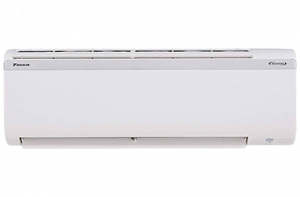

FTKT MODEL

FTKG MODEL

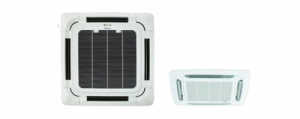

Cassette Inverter Model Air Conditioner

TECHNICAL SPECIFICATION

FCVF24ARV16 MODEL

TECHNICAL SPECIFICATION

FCVF42ARV16 MODEL

TECHNICAL SPECIFICATION

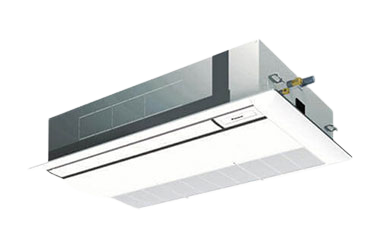

inverter Model One way cassette Air Conditioner

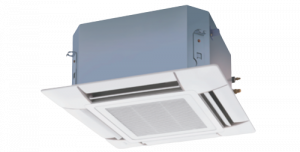

Inverter Model 2X2 Single Phase Aiconditoner Aavailable in 1.3 TR, 1.7TR

Daikin Make Cassette Non Inverter Model 2 Star Rated 3X3 Single Phase A/c Available in 1.5TR TO 4.0TR

Technical Specifications

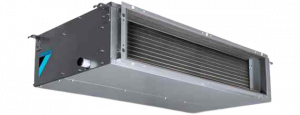

Ductable Low Static Available in 1.5TR, 2TR - Single Phase R32

Duct Slim Type Air Conditioner (Heat Pump)

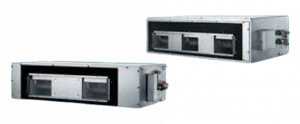

Ductable Non inverter Slim model Air Conditioner (Heat Pump)

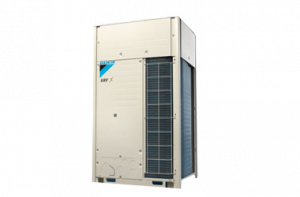

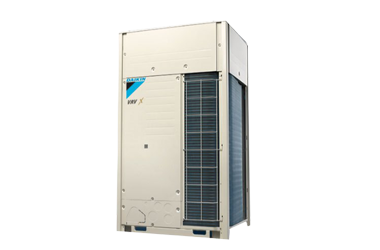

VRV X

X’ TENSIVE RANGE UP TO 60 HP

X’ TRANSACTIONS POWER SAVIN

VRT – VARIABLE REFRIGERANT TEMPERATURE

X’ CELLENT TECHNOLOGY

ADVANCE TECHNOLOGY ACHIEVED

X’ TENDED RELIABILITY

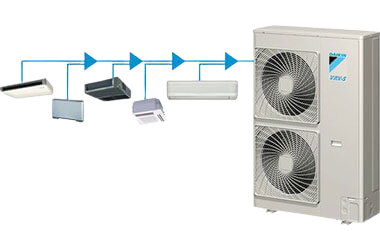

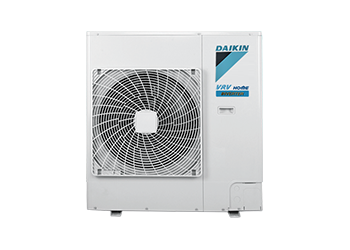

VRV Home

HEAT PUMP SERIES

COOLING ONLY SERIES

ENERGY EFFICIENCY

DESIGN FLEXIBILITY


Model Name		Indoor Unit		FKA50CVM	FKA71CVM
Model Name		Outdoor Unit		RZVF50BRV16	RZVF71BRV16
Remote	Wireless	Optional		BRC4M150W16
	Signal Receiver unt – Model Number			BRC4M61-6
	Wired	Optional		BRC1E63
Panel Code	Model Number			BYKA50C-W1	BYKA71C-W1
Power Supply				1 Phase, 230 V,50 Hz	1 Phase, 230 V, 50 Hz
Cooling capacity-Rated (min ~ max)			kW	5.0 (3.2 ~ 5.6)	7.1 (3.2 ~ 8.0)
Power Consumption	Cooling Rated		kW	1.520	2.235
Annual Power Consumption			kWh	890	1264
ISEER/Stars			Wh/Wh	4.35/4 Star	4.35/4 Star
Indoor Unit	Color			Fresh White	Fresh White
	Air flow Rate (H/HM/M/ML/L)		m3/min	13.5/12/10	17.5/15.3/13
	Air flow Rate (H/HM/M/ML/L)		cfm	477/424/353	618/547/459
	Sound level (H/HM/M/ML/L)		dB(A)	42/39/36	45/42/35
	Dimensions (HXWXD)	Unit	mm	200x1000x598	2000x1200x598
	Dimensions (HXWXD)	Panel	mm	45x1180x658	45x1380x658
	Machine Weight	Unit	kg	25	29
	Machine Weight	Panel	kg	5.5	6
	Certified operation range		CWB	14 to 28	14 to 28
Outdoor Unit	Color			lvory White	lvory White
	Compressor	Type		Hermetically sealed swig type	Hermetically sealed swig type
	Compressor	Motor Output	kW	1.3	1.3
	Refrigerant Charge (R-32)		kg	1.09 (Charged for 15m)	1.30 (Charged for 15m)
	Sound level	Cooling	dB(A)	48	50
	Dimensions (HXWXD)		mm	595x845x300	595x845x300
	Machine Weight		kg	36.5	40
	Certified operation range		CDB	21 to 46	21 to 46
Piping Connections	Liquid (Flare)		mm	Ø9.52	Ø9.52
	Gas (Flare)		mm	Ø15.88	Ø15.88
	Drain		mm	Ø18.0 (Hole)	Ø18.0 (Hole)
Max.inter unit piping length			m	30	30
Max.installation level difference			m	20	20

Model			Indoor Unit	FFF50BV16	FFF60BV16
Model			Outdoor Unit	RZCF50BRV16	RZCF60BRV16
Remote	Wireless		Optional	BRC4M150W16
	Single Receiver Unit-Model Number		Number	BRC7M630W-6
	Wired		Optional	BRC1E62
Panel Code	Model Number			BYFQ60B3W1
Power Supply				1 Phase, 230 V, 50 Hz	1 Phase, 230 V, 50 Hz
Coling Capacity-Rated (min~max)			kW	5.0 (3.2 ~ 5.6)	6.0 (3.2 ~ 6.0)
Ppwer Consumption	Cooling Rate		kW	1.690	1.990
Annual Power Consumption			Kwh	1005	1207
ISEER/Star			Wh/Wh	3.85/3 Star	3.85/3 Star
Indoor	Color			Fresh White	Fresh White
	Air Flow Rate (H/HM/M/ML/L)		m3,min	15/10	15/10
	Air Flow Rate (H/HM/M/ML/L)		cfm	529/353	529/353
	Sound Level (H/HM/M/ML/L)		dB(A)	41/32	41/32
	Dimensions (HXWXD)	Unit	mm	260x575x575	260x575x575
	Dimensions (HXWXD)	Panel	mm	55x700x700	55x700x700
	Machine Weight	Unit	Kg	17.5	17.5
	Machine Weight	Panel	Kg	2.7	2.7
	Certified operatin range		˚CWB	14 to 28	14 to 28
Outdoor	Color			lvory White	lvory White
	Compressor	Type		Hermetically Sealed Swig Type	Hermetically Sealed Swig Type
	Compressor	Motor Output	KW	1.3	1.3
	Refrigerant Charge [R 32]		Kg	1.09 (Charged for 15 m)	1.30 (Charged for 15 m)
	Sound Level	Cooling	dB(A)	48	50
	Dimensions (HXWXD)		mm	595x845x300	595x845x300
	Machine Weight		Kg	36.5	40
	Certified operatin range		˚CWB	21 To 46	21 To 46
Piping Connections	Liquid (Flair)		mm	Ø9.52	Ø9.52
	Gas (Flare)		mm	Ø15.88	Ø15.88
	Drain		mm	Ø18.0 (Hole)	Ø18.0 (Hole)
Max.inter unit piping length			m	30	20
Ma.Installation level difference			m	20	20

Model				Indoor Unit	FCVF18ARV16	FCVF24ARV16	FCVF30ARV16	FCVF36ARV16	FCVF42ARV16	FCVF48ARV16
Model				Outdoor Unit	RGVF18ARV16	RGVF24ARV16	RGVF30ARV16	RGVF36ARV16	RGVF42ARV16	RGVF48ARV16
Remote	Wireless	Optional			BRC52B62
Remote	Wired	Optional			BRC51A62
Panel Code	Model Number				BC50F3XW6
Nominal Cooling Capacity				Tonnage	1.5	1.9	2.4	2.7	3.5	3.8
				Btu/Hr	18084	22860	29029	32102	42027	45630
				Kw	5.3	6.7	8.5	9.4	12.3	13.4
nominal Total Input Power (Cooling)				w	1536	1942	2464	2724	3750	4607
Annual Power Consumption				Kwh	1189.03	1503.32	1907.04	2109.44	NA	NA
ISEER				w/w	3.45	3.45	3.45	3.45	3.28	2.9
BEE Star Level					2	2	2	2	NA	NA
Power Source				V/Ph/Hz	230V/1/50				415/3/50
Refrigerant Type					R-32
Indoor	Air Flow	High	CFM	High	730	890	1030	1030	1120	1120
		Medium		Medium	620	760	870	870	1030	1030
		Low		Low	510	620	730	730	890	890
		Quiet		Quiet	360	490	580	580	760	760
	Sound Pressure Level	High	dBA	High	38	41	46	46	48	48
		Medium		Medium	35	38	41	41	45	45
		Low		Low	33	35	37	37	41	41
		Quiet		Quiet	29	32	34	34	37	37
	Unit Dimension (Panel)	Height	mm	Height	246[304]	246[304]	288[346]	288[346]	288[346]	288[346]
		Width	mm	Width	840[950]	840[950]	840[950]	840[950]	840[950]	840[950]
		Depth	mm	Depth	840[950]	840[950]	840[950]	840[950]	840[950]	840[950]
	Unit Weight (Panel)		Kg		22[5]	22[5]	25[5]	25[5]	25[5]	29[5]
Outdoor	Unit Dimension		mm	Height	595	595	990	990	990	990
			mm	Width	845	845	940	940	940	940
			mm	Depth	300	300	320	320	320	320
	Unit Weight			Kg	40	45	68	71	74	74
	Pipe Connection		Type	Flare
			Liquid	mm	Ø6.4	Ø6.4	Ø9.5	Ø9.5	Ø9.5	Ø9.5
			Gas	mm	Ø12.7	Ø15.9	Ø15.9	Ø15.9	Ø15.9	Ø15.9
Max Piping Length				m	20	20	20	20	30	30
Max Piping Elevation				m	10	10	10	10	15	15

Model Name		Indoor Unit		FDBF12ARV16	FDBF18ARV16	FDBF24ARV16	FDBF30ARV16	FDBF36ARV16	FDBF42ARV16	FDBF48ARV16	FDBF54ARV16
Model Name		Outdoor Unit		RGF12ARV16	RGF18ARV16	RGF24ARV16	RGF30ARV16	RGF36ARV16	RGF42ARV16	RGF48ARV16	RGF54ARV16
Rated Capacity		Btu/H		12000	18000	24000	30019	36023	42027	48032	54035
Rated Capacity		W		3516	5274	7032	8790	10548	12306	14064	15822
Rated Total Input Power		W		1212	1819	2425	2750	3330	3850	4530	5456
Pwer Source		V/Ph/Hz		230/1/50	230/1/50	230/1/50	230/1/50	230/1/50	415/3/50	415/3/50	415/3/50
Refrigerant Type				R-32
Indoor Unit	Control	Operation		Wired Control
	Airflow (H/M/L)	CFM		400/350/300	600/390/330	800/650/600	1000/910/815	1200/1070/950	1400/1265/1135	1500/1360/1190	1700/1585/1440
	External Static Pressure	Pa		20	20	20	20	30	40	50	50
	Sound Pressure Level	dBA		38	41	43	42	46	47	49	50
	Unit Dimension (HxWxD)	mm		250x880x605	250x880x605	250x1130x605	295x1430x665	295x1430x665	295x1430x665	295x1730x665	295x1730x665
	Packing Dimension (HxWxD)	mm		266x1080x648	266x1080x648	266x1330x648	340x1645x725	340x1645x725	340x1645x725	435x1950x725	435x1950x725
	Unit Weight	Kg		36	37	46	50	56	56	70	70
	Condensate Dain Size	mm		32	32	32	32	32	32	32	32
Outdoor Unit	Unit Dimension (HxWxD)	mm		550x765x285	595x845x300	595x845x300	990x940x320	990x940x320	990x940x320	990x940x320	990x940x320
	Packing Dimension (HxWxD)	mm		642x932x380	680x1035x410	680x1035x410	1160x1050x420	1160x1050x420	1160x1050x420	1160x1050x420	1160x1050x420
	Unit Weight	Kg		30	36	45	66	68	74	74	86
	Pipe Connection	Type		Flare	Flare	Flare	Flare	Flare	Flare	Flare	Flare
		Liauid	mm	6.4	6.4	6.4	9.52	9.52	9.52	9.52	9.52
		gas	mm	12.7	12.7	15.9	15.9	15.9	15.9	15.9	19.05
