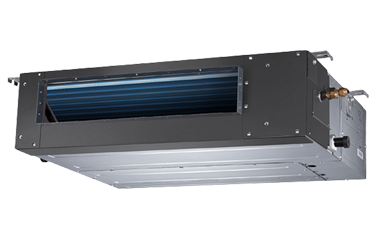

Ductable

Floor Stand

VRF

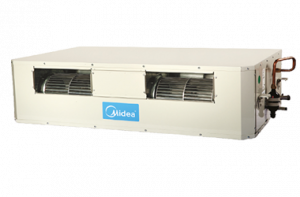

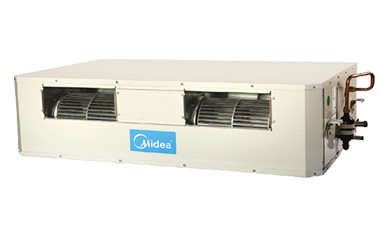

5.5TR 3 Phase Midea High Static Duct

5.5TR 3 Phase Midea High Static Duct
Technical Specification
Type	Details
Model No.	MCAD066WSC2
Tonnage Category \| TR	5.5 TR
Operating Power	380~415V 3Ph 50Hz
Ambient operating Range ?C	18 ~ 50 ?C
Total Input Power/ Current I Watts / A	6500 Watts/ 11.5 A
Refrigerant	R 410a
Air Flow Volume (Max) CMH/ cfm	3740 CMH/ 2200 cmh
Air Filter	Inbuilt
Drain Pump \| Head	Optional I 750 mm
Remote Control	Inbuilt I Optional
Compressor \| Type I No’s	Scroll Type I 1
Noise Level (Max-Min) dBA	65 dBA
Main Input Power Location	ODU
Net Dimensions \|Indoor Unit I WxDxH \|cm	120×72.5×34.5 cm
Net Dimensions \|Outdoor Unit I cm	90x32x82 cm
Net weight \| Indoor Unit \| Kg	50 Kg
Net weight \| Unit/Panel \| Kg	75 Kg

8.5TR 3 Phase Midea High Static Duct
Technical Specification
Type	Details
Model No.	MCAD102WSC2
Tonnage Category \| TR	8.5 TR
Operating Power	380~415V 3Ph 51Hz
Ambient operating Range ?C	18 ~ 50 ?C
Total Input Power/ Current I Watts / A	9200 Watts/ 16.2 A
Refrigerant	R 410a
Air Flow Volume (Max) CMH/ cfm	5780 CMH/ 3400 cmh
Air Filter	Inbuilt
Drain Pump \| Head	Optional I 750 mm
Remote Control	Inbuilt I Optional
Compressor \| Type I No’s	Scroll Type I 1
Noise Level (Max-Min) dBA	72 dBA
Main Input Power Location	ODU
Net Dimensions \|Indoor Unit I WxDxH \|cm	162×67.5×46 cm
Net Dimensions \|Outdoor Unit I cm	90x58x96 cm
Net weight \| Indoor Unit \| Kg	77 Kg
Net weight \| Unit/Panel \| Kg	117 Kg

11TR 3 Phase Midea High Static Duct
Technical Specification
Type	Details
Model No.	MCAD132WSC2
Tonnage Category \| TR	11 TR
Operating Power	380~415V 3Ph 52Hz
Ambient operating Range ?C	18 ~ 50 ?C
Total Input Power/ Current I Watts / A	13500 Watts/ 24 A
Refrigerant	R 410a
Air Flow Volume (Max) CMH/ cfm	7476 CMH/ 4400 cmh
Air Filter	Inbuilt
Drain Pump \| Head	Optional I 750 mm
Remote Control	Inbuilt I Optional
Compressor \| Type I No’s	Scroll Type I 2
Noise Level (Max-Min) dBA	75 dBA
Main Input Power Location	ODU
Net Dimensions \|Indoor Unit I WxDxH \|cm	187.5x70x46 cm
Net Dimensions \|Outdoor Unit I cm	90x32x82 cm
Net weight \| Indoor Unit \| Kg	111 Kg
Net weight \| Unit/Panel \| Kg	75×2 Kg

17TR 3 Phase Midea High Static Duct
Technical Specification
Type	Details
Model No.	MCAD204WSC2
Tonnage Category \| TR	17 TR
Operating Power	380~415V 3Ph 53Hz
Ambient operating Range ?C	18 ~ 50 ?C
Total Input Power/ Current I Watts / A	20200 Watts/ 34 A
Refrigerant	R 410a
Air Flow Volume (Max) CMH/ cfm	11560 CMH/ 6800 cmh
Air Filter	Inbuilt
Drain Pump \| Head	Optional I 750 mm
Remote Control	Inbuilt I Optional
Compressor \| Type I No’s	Scroll Type I 2
Noise Level (Max-Min) dBA	77 dBA
Main Input Power Location	ODU
Net Dimensions \|Indoor Unit I WxDxH \|cm	215x85x56 cm
Net Dimensions \|Outdoor Unit I cm	90x58x96 cm
Net weight \| Indoor Unit \| Kg	170 Kg
Net weight \| Unit/Panel \| Kg	117×2 Kg

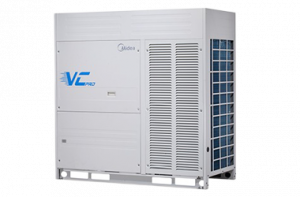

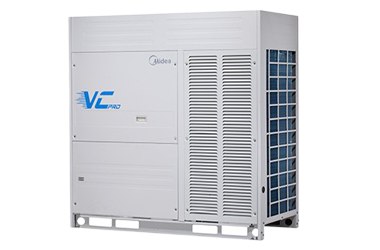

8HP, 10HP, 12HP, 14HP, 16 HP, 18HP, ,20HP, 22HP, 24HP, 26HP, 28HP, 30HP, 32HP VC PRO 3 Ø COOLING SERIES SMALL

HP	8	10	12	14
Model Name	MVC-224WV2GN1-IN	MVC-280WV2GN1-IN	MVC-335WV2GN1-IN	MVC-400WV2GN1-IN
Power supply \| V/Ph/Hz	380-415V 3N~ 50/60Hz	380-415V 3N~ 50/60Hz	380-415V 3N~ 50/60Hz	380-415V 3N~ 50/60Hz
Cooling \| Capacity \| Kw	22.4	28	33.5	40
Cooling \| Capacity \| kBtu/h	76.5	95.6	114.4	136.6
Cooling \| Power input \| kw	5.17	6.81	8.61	10.81
Cooling \| EER	4.33	4.11	3.89	3.7
Connected indoor unit \| Total Capacity	50-130%	50-130%	50-130%	50-130%
Connected indoor unit \| Maximum quantity	13	16	20	23
Compressors \| Type	DC inverter	DC inverter	DC inverter	DC inverter
Compressors \| Quantity	1	1	1	1
Fan motors \| Type	DC	DC	DC	DC
Fan motors \| Quantity	1	1	1	1
Fan motors \| Motor output \| Kw	0.56	0.56	0.56	0.56
Fan motors \| Max ESP \| Pa	20 default;60 customization option	20 default;60 customization option	20 default;60 customization option	20 default;60 customization option
Fan motors \| Airfow rate \| m3/h	10000	10000	11000	11000
Refrigerant \| Type	R410A	R410A	R410A	R410A
Refrigerant \|Factory charge \| Kg	8	8	8	8
Pipe Connections \| Liquid pipe \| mm	F 12.7	F 12.7	F 15.9	F 15.9
Pipe Connections \| Gas pipe \| mm	F25.4	F25.4	F28.6	F31.8
Sound pressure level \| dB(A)	57	58	60	60
Net dimensions (W×H×D) \| cm	96×161.5×76.5	96×161.5×76.5	96×161.5×76.5	96×161.5×76.5
Packed dimensions (W×H×D) \| cm	102.5×179×83	102.5×179×83	102.5×179×83	102.5×179×83
Net weight \| Kg	188	188	188	188
Gross weight \| Kg	204	204	204	204
Ambient temp. operation range \| Cooling \| °C	-5°C to 55°C	-5°C to 55°C	-5°C to 55°C	-5°C to 55°C

HP	16	18	20	22
Model Name	MVC-450WV2GN1-IN	MVC-500WV2GN1-IN	MVC-560WV2GN1-IN	MVC-615WV2GN1-IN
Power supply \| V/Ph/Hz	380-415V 3N~ 50/60Hz	380-415V 3N~ 50/60Hz	380-415V 3N~ 50/60Hz	380-415V 3N~ 50/60Hz
Cooling \| Capacity \| Kw	45	50	56	61.5
Cooling \| Capacity \| kBtu/h	153.7	170.8	191.3	210
Cooling \| Power input \| kw	12.13	13.89	16.92	19.46
Cooling \| EER	3.71	3.6	3.31	3.16
Connected indoor unit \| Total Capacity	50-130%	50-130%	50-130%	50-130%
Connected indoor unit \| Maximum quantity	26	29	33	36
Compressors \| Type	DC inverter	DC inverter	DC inverter	DC inverter
Compressors \| Quantity	1	1	1	1
Fan motors \| Type	DC	DC	DC	DC
Fan motors \| Quantity	1	1	2	2
Fan motors \| Motor output \| Kw	0.75	0.75	0.56×2	0.56×2
Fan motors \| Max ESP \| Pa	20 default;60 customization option	20 default;60 customization option	20 default;60 customization option	20 default;60 customization option
Fan motors \| Airfow rate \| m3/h	12000	12000	12600	12600
Refrigerant \| Type	R410A	R410A	R410A	R410A
Refrigerant \|Factory charge \| Kg	11	11	13	13
Pipe Connections \| Liquid pipe \| mm	F 15.9	F 15.9	F 19.1	F 19.1
Pipe Connections \| Gas pipe \| mm	F31.8	F31.8	F31.8	F31.8
Sound pressure level \| dB(A)	60	61	62	63
Net dimensions (W×H×D) \| cm	96×161.5×76.5	96×161.5×76.5	125×161.5×76.5	125×161.5×76.5
Packed dimensions (W×H×D) \| cm	102.5×179×83	102.5×179×83	130.5×179×82	130.5×179×82
Net weight \| Kg	197	197	278	278
Gross weight \| Kg	213	213	297	297
Ambient temp. operation range \| Cooling \| °C	-5°C to 55°C	-5°C to 55°C	-5°C to 55°C	-5°C to 55°C

HP	24	26	28	30	32
Model Name	MVC-670WV2GN1-IN	MVC-730WV2GN1-IN	MVC-785WV2GN1-IN	MVC-850WV2GN1-IN	MVC-900WV2GN1-IN
Power supply \| V/Ph/Hz	380-415V 3N~ 50/60Hz	380-415V 3N~ 50/60Hz	380-415V 3N~ 50/60Hz	380-415V 3N~ 50/60Hz	380-415V 3N~ 50/60Hz
Cooling \| Capacity \| Kw	67	73	78.5	85	90
Cooling \| Capacity \| kBtu/h	228.8	249.3	268.1	290.3	307.4
Cooling \| Power input \| kw	22.19	22.46	24.84	27.87	30.61
Cooling \| EER	3.02	3.25	3.16	3.05	2.94
Connected indoor unit \| Total Capacity	50-130%	50-130%	50-130%	50-130%	50-130%
Connected indoor unit \| Maximum quantity	39	43	46	50	53
Compressors \| Type	DC inverter	DC inverter	DC inverter	DC inverter	DC inverter
Compressors \| Quantity	2	2	2	2	2
Fan motors \| Type	DC	DC	DC	DC	DC
Fan motors \| Quantity	2	2	2	2	2
Fan motors \| Motor output \| Kw	0.56×2	0.56×2	0.56×2	0.56×2	0.56×2
Fan motors \| Max ESP \| Pa	20 default;60 customization option	20 default;60 customization option	20 default;60 customization option	20 default;60 customization option	20 default;60 customization option
Fan motors \| Airfow rate \| m3/h	12600	20000	21000	21000	21000
Refrigerant \| Type	R410A	R410A	R410A	R410A	R410A
Refrigerant \|Factory charge \| Kg	13	19	19	19	19
Pipe Connections \| Liquid pipe \| mm	F 19.1	F 22.2	F 22.2	F 22.2	F 22.2
Pipe Connections \| Gas pipe \| mm	F31.8	F31.8	F31.8	F31.8	F31.8
Sound pressure level \| dB(A)	63	64	64	64	64
Net dimensions (W×H×D) \| cm	120×161.5×76.5	125×161.5×76	158×161×76	158×161×76	158×161×76
Packed dimensions (W×H×D) \| cm	130×179×82	130.5×179×82	181×165×84	181×165×84	181×165×84
Net weight \| Kg	278	319	319	319	319
Gross weight \| Kg	297	343	343	343	343
Ambient temp. operation range \| Cooling \| °C	-5°C to 55°C	-5°C to 55°C	-5°C to 55°C	-5°C to 55°C	-5°C to 55°C

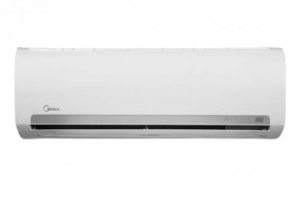

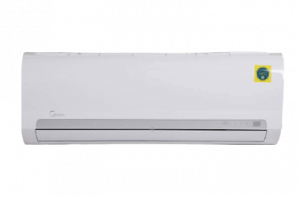

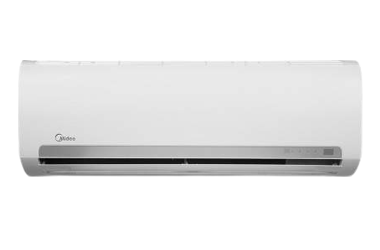

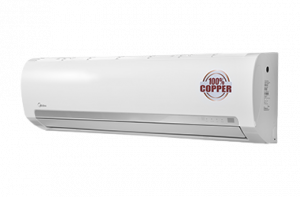

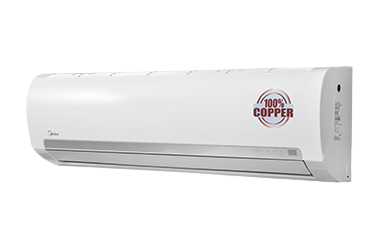

Type	Details
MODEL NO.	MAS12SC3R30F0
TONNAGE CATEGORY(TR)	1
RATED CAPACITY*	3550
NOMINAL COOLING / HEATING POWER INPUT*	980
ANNUAL POWER(KWH)	758.62
BEE STAR RATING***	3 Star
ISEER VALUE(W/W)	3.62
RATED POWER SUPPLY(V-Ph-Hz)	230 – 1 – 50
NET WEIGHT(Kgs(IDU/ODU))	9 / 28.7
AIR FLOW RATE(CFM)	400
INDOOR NOISE LEVEL (H/M/L)(db)	39/35/32
FAN MOTOR (INDOOR)(No.of Speeds)	4
FAN MOTOR (OUTDOOR)(No.of Speeds)	1
INDOOR UNIT (HEIGHT)(cm)	28.5
INDOOR UNIT (WIDTH)(cm)	80.5
INDOOR UNIT (DEPTH)(cm)	20.5
OUTDOOR UNIT (HEIGHT)(cm)	54
OUTDOOR UNIT (WIDTH)(cm)	78
OUTDOOR UNIT (DEPTH)(cm)	25
HD Filter	Yes
PM 2.5 MICRON FILTER ( 3M Brand)	NA
PM 2.5 MICRON FILTER	NA
AIR CLEANER (COMPOSITE AIR FRESHING MESH)	Yes
AG+ NANO FILTER	Yes
HYPER PROTECTIVE FILTER	NA
OUT DOOR UNIT	Conventional
REFRIGERANT	R32
AIR DIRECTION CONTROL	Yes
SECURITY LOCK	Yes
IDU TEMP DISPLAY	LED 7 segment
REMOTE CONTROL TYPE	LCD Remote
REMOTE BACKLIT	Yes
AUTO OFF TIMER	Yes
AUTO ON TIMER	Yes
ECONOMIC SLEEP MODE	Yes
REFRIGERANT LEAKAGE DETECTOR	Yes
LOUVER POSITION MEMORY	Yes
DRY MODE	Yes
AUTO FAN SPEED	Yes
INTELLIGENT CRF ALERT	Yes
AUTO SWING	Yes
AUTO CLEANSER (Self Clean)	NA
FOLLOW ME	NA
AUTO MODE	Yes
AUTO RESTART	Yes
TURBO MODE	Yes
DOUBLE DRAIN (EASY INSTALLATION)	Yes
MANUAL ON/OFF BUTTON	Yes
MY MODE (FAVOURITE MODE)	NA
HIGH AMBIENT WORKING (at 230V rated)	52°C
IDU DISPLAY ON/Office	Yes

Type	Details
MODEL NO.	MAS24SC3R30F0
TONNAGE CATEGORY(TR)	2
RATED CAPACITY*	6200
NOMINAL COOLING / HEATING POWER INPUT*	1712
ANNUAL POWER(KWH)	1325.27
BEE STAR RATING***	3 Star
ISEER VALUE(W/W)	3.62
RATED POWER SUPPLY(V-Ph-Hz)	230 – 1 – 50
NET WEIGHT(Kgs(IDU/ODU))	13.8/44
AIR FLOW RATE(CFM)	675
INDOOR NOISE LEVEL (H/M/L)(db)	46/44/40
FAN MOTOR (INDOOR)(No.of Speeds)	4
FAN MOTOR (OUTDOOR)(No.of Speeds)	1
INDOOR UNIT (HEIGHT)(cm)	32.5
INDOOR UNIT (WIDTH)(cm)	103.8
INDOOR UNIT (DEPTH)(cm)	20
OUTDOOR UNIT (HEIGHT)(cm)	70
OUTDOOR UNIT (WIDTH)(cm)	84.5
OUTDOOR UNIT (DEPTH)(cm)	32
HD Filter	Yes
PM 2.5 MICRON FILTER ( 3M Brand)	NA
PM 2.5 MICRON FILTER	NA
AIR CLEANER (COMPOSITE AIR FRESHING MESH)	Yes
AG+ NANO FILTER	Yes
HYPER PROTECTIVE FILTER	NA
OUT DOOR UNIT	Conventional
REFRIGERANT	R32
AIR DIRECTION CONTROL	Yes
SECURITY LOCK	Yes
IDU TEMP DISPLAY	LED 7 segment
REMOTE CONTROL TYPE	LCD Remote
REMOTE BACKLIT	Yes
AUTO OFF TIMER	Yes
AUTO ON TIMER	Yes
ECONOMIC SLEEP MODE	Yes
REFRIGERANT LEAKAGE DETECTOR	Yes
LOUVER POSITION MEMORY	Yes
DRY MODE	Yes
AUTO FAN SPEED	Yes
INTELLIGENT CRF ALERT	Yes
AUTO SWING	Yes
AUTO CLEANSER (Self Clean)	NA
FOLLOW ME	NA
AUTO MODE	Yes
AUTO RESTART	Yes
TURBO MODE	Yes
DOUBLE DRAIN (EASY INSTALLATION)	Yes
MANUAL ON/OFF BUTTON	Yes
MY MODE (FAVOURITE MODE)	NA
HIGH AMBIENT WORKING (at 230V rated)	52°C
IDU DISPLAY ON/Office	Yes

Type	Details
Model Name	18K FLAIR SPLIT AC (5 STAR)
Capacity in Tons	1.5 Ton
Dehumidification	No
Compressor	Rotary
Energy Rating	5 Star
BEE Rating	NO
Star Rating	5
Power Requirements	AC 230 V, 50 Hz
Power Input	1380 W
Refrigerant	R-22
Power Requirements	AC 230 V, 50 Hz

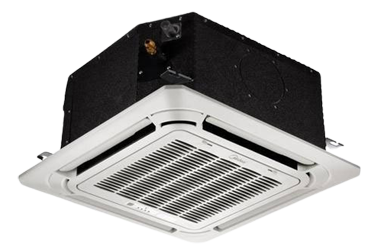

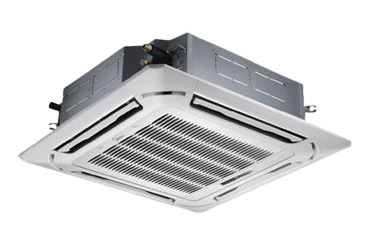

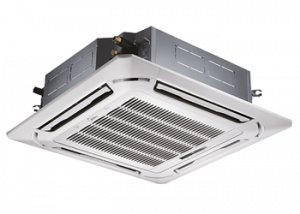

Type	Details
Model No.	MCAC18RY1C2
Tonnage Category \| TR	1.5 TR
Nominal Cooling Capacity* \| Watts	5.3 KW
ISSER** \| W/W	3.3 W
BEE Star Rating	1 Star
Operating Power	220~240V 1Ph 50Hz
Ambient operating Range ?C	18 ~ 50 ?C
Total Input Power/ Current Watts / A	1640 Watts/ 7.2 A
Annual_Power_Consumption** \| KWH	1270 W
Refrigerant	R410A
Air Flow Volume (Max) CMH/ cfm	1220 CMH/ 718 cmh
Air Filter	Inbuilt
Drain Pump \| Head	Inbuilt I 750 mm
Remote Control	Wireless Remote I Inbuilt
Compressor \| Type	Rotary Type
Noise Level (Max-Min) dBA	47 ~ 35 dBA
Main Input Power Location	IDU
Net Dimensions \|Indoor Unit I WxDxH \|cm	84 x 84 x 23 cm
Net Dimensions \|Indoor Unit Panel I WxDxH \| cm	95 x 95 x 5.5 m
Net Dimensions \|Outdoor Unit I cm	78x25x54 cm
Net weight \| Indoor Unit \| Kg	29 Kg
Net weight \| Unit/Panel \| Kg	36 Kg

Type	Details
Model No.	MCAC18RY2C2
Tonnage Category \| TR	1.5 TR
Nominal Cooling Capacity* \| Watts	5.4 KW
ISSER** \| W/W	3.4 W
BEE Star Rating	2 Star
Operating Power	220~240V 1Ph 50Hz
Ambient operating Range ?C	18 ~ 50 ?C
Total Input Power/ Current Watts / A	1580 Watts/ 6.65 A
Annual_Power_Consumption** \| KWH	1224 W
Refrigerant	R410A
Air Flow Volume (Max) CMH/ cfm	1220 CMH/ 718 cmh
Air Filter	Inbuilt
Drain Pump \| Head	Inbuilt I 750 mm
Remote Control	Wireless Remote I Inbuilt
Compressor \| Type	Rotary Type
Noise Level (Max-Min) dBA	47 ~ 35 dBA
Main Input Power Location	IDU
Net Dimensions \|Indoor Unit I WxDxH \|cm	84 x 84 x 23 cm
Net Dimensions \|Indoor Unit Panel I WxDxH \| cm	95 x 95 x 5.5 cm
Net Dimensions \|Outdoor Unit I cm	9×3.2×6.7 cm
Net weight \| Indoor Unit \| Kg	29 Kg
Net weight \| Unit/Panel \| Kg	46 Kg

Midea

HW

Cassette

Ductable

Floor Stand

VRF

Contact Inform

About

Products

1.0TR SANTIS PRO CLS (3 Star)

2.0TR SANTIS PRO CLS (3 Star)

1.5TR FLAIR (3 Star)

Midea Non Inverter Cassette AC

1.5TR 1 Star Non Inverter Cassette AC

1.5TR 2 Star Inverter Cassette AC

2.0TR 1Star Non Inverter Cassette AC

2.0TR 2 Star Non Inverter Cassette AC

3.0TR 3 Phase Non Inverter Cassette AC

4.0TR 3 Phase Non Inverter Cassette AC

MIDEA INVERTER CASSETTE

1.5TR 3 Star Inverter Cassette AC

2.0TR 3-Star Inverter Cassette AC

3.0TR 1 Star Inverter Cassette AC

3.0TR 3 Phase Inverter Cassette AC

4.0TR 3 Phase Inverter Cassette AC

5.5TR 3 Phase Midea High Static Duct

1.5 TR(18K) Medium Static Duct

2.0 TR(24K) Medium Static Duct

3.0 TR(36K) Medium Static Duct (3 Phase)

4.2 TR(50K) Medium Static Duct (3 Phase)

Floor Standing 1.5TR 1 STAR

Floor Standing 1.5TR 2 STAR

2.0 TR(24K) Floor Standing (2 Star)

3.0 TR(36K) Floor Standing (3 Phase)

4.0 TR(48K) Floor Standing (3 Phase)

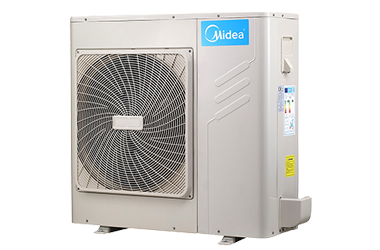

2.5HP, 3.5HP, 4 HP, 5 HP, 6 HP MINI VRF SMALL COOLING SERIES

3HP, 4HP, 4.5HP, 5HP, 6 HP MINI VRF SMALL HEAT PUMP SERIES

8HP, 10HP, 12HP, 14HP, 16 HP, 18HP, ,20HP, 22HP, 24HP, 26HP, 28HP, 30HP, 32HP VC PRO 3 Ø COOLING SERIES SMALL

HP	2.5	3.5	4	5	6
Model name	MDVC-V72/DVN1	MDVC-V92/DVN1	MDVC-V110/DVN1	MDVC-V145/DVN1	MDVC-V170/DVN1
Power supply \| V/Ph/Hz	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50
Cooling \| Capacity \| Kw	7.2	9.2	11	14.5	17
Cooling \| Power input \| kw	1.64	2.06	2.75	3.57	3.99
Cooling \| EER	4.39	4.47	4	4.06	4.26
Connectable indoor unit \| Total Capacity	45~130% of outdoor unit capacity	45~130% of outdoor unit capacity	45~130% of outdoor unit capacity	45~130% of outdoor unit capacity	45~130% of outdoor unit capacity
Connectable indoor unit \| Maximum quantity	4	5	6	8	9
Compressor \| Type	DC Inverter-Twin Rotary	DC Inverter-Twin Rotary	DC Inverter-Twin Rotary	DC Inverter-Twin Rotary	DC Inverter-Twin Rotary
Compressor \| Quantity	1	1	1	1	1
Fan motors \| Type	DC Motor	DC Motor	DC Motor	DC Motor	DC Motor
Fan motors \| Quantity	1	1	1	1	1
Refrigerant \| Type	R410A	R410A	R410A	R410A	R410A
Refrigerant \|Factory charge \| Kg	1.4	1.4	1.4	1.4	1.4
Pipe Connections \| Liquid pipe \| mm	?9.53	?9.53	?9.53	?9.53	?9.53
Pipe Connections \| Gas pipe \| mm	?15.9	?15.9	?15.9	?15.9	?19.1
Air Flow rate \| m3/h	3400	3400	3400	5100	5100
Sound pressure level \| dB(A)	54	54	54	55	55
Net dimensions (W×H×D) \| cm	97.3×86.2×30.2	97.3×86.2×30.2	97.3×86.2×30.2	105.3×86.5×52.3	105.3×86.5×52.3
Packed dimensions (W×H×D) \| cm	102.5x91x41	102.5x91x41	102.5x91x41	112x89x56	112x89x56
Net weight \| Kg	58	58	58	85	85
Gross weight \| Kg	63	63	63	92	92
Operation temperature range \|°C	Cooling: -5~48	Cooling: -5~48	Cooling: -5~48	Cooling: -5~48	Cooling: -5~48

HP	3	4	4.5	5	6
Model	MDV-V80W/DN1	MDV-V105W/DN1	MDV-V120W/DN1	MDV-V140W/DN1	MDV-V160W/DN1(B)
Power supply \| V/Ph/Hz	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50
Cooling \| Capacity \| Kw	8	10.5	12.3	14	15.5
Cooling \| Power input \| kw	2.05	2.68	3.25	3.95	4.52
Cooling \| EER	3.9	3.92	3.78	3.54	3.43
Heating \| Capacity \|Kw	9	11.5	13.2	15.4	17
Heating \|Power Input \| Kw	2.24	2.9	3.47	4.16	4.77
Heating \| COP	4.02	3.97	3.8	3.7	3.56
Connectable Indoor Unit \| Total Capacity	45~130% of outdoor unit capacity	45~130% of outdoor unit capacity	45~130% of outdoor unit capacity	45~130% of outdoor unit capacity	45~130% of outdoor unit capacity
Connectable Indoor Unit\| Maximum quantity	4	5	6	6	7
Compressors \| Type	DC Inverter-Twin Rotary	DC Inverter-Twin Rotary	DC Inverter-Twin Rotary	DC Inverter-Twin Rotary	DC Inverter-Twin Rotary
Compressors \| Quantity	1	1	1	1	1
Fan motors \| Type	DC Motor	DC Motor	DC Motor	DC Motor	DC Motor
Fan motors \| Quantity	1	1	2	2	2
Refrigerant \| Type	R410A	R410A	R410A	R410A	R410A
Refrigerant \|Factory charge \| Kg	2.8	2.95	3.3	3.9	3.9
Pipe Connections \| Liquid pipe \| mm	?9.53	?9.53	?9.53	?9.53	?9.53
Pipe Connections \| Gas pipe \| mm	?15.9	?15.9	?15.9	?15.9	?19.1
Air Flow rate \| m3/h	5500	5500	6000	6000	6000
Sound pressure level \| dB(A)	56	57	57	57	57
Net dimensions (W×H×D) \| cm	107.5×96.6×39.6	107.5×96.6×39.6	90×132.7×40	90×132.7×40	90×132.7×40
Packed dimensions (W×H×D) \| cm	112×110×43.5	112×110×43.5	103×145.6×43.5	103×145.6×43.5	103×145.6×43.5
Net weight \| Kg	137	146.5	147	240	275
Gross weight \| Kg	153	162.5	163	260	290
Operation temperature range \|°C	Cooling: -5~48; Heating: -15~24	Cooling: -5~48; Heating: -15~24	Cooling: -5~48; Heating: -15~24	Cooling: -5~48; Heating: -15~24	Cooling: -5~48; Heating: -15~24

Midea

HW

Cassette

Ductable

Floor Stand

VRF

Contact Inform

About

Products

FOLLOW US

1.0TR SANTIS PRO CLS (3 Star)

2.0TR SANTIS PRO CLS (3 Star)

1.5TR FLAIR (3 Star)

Midea Non Inverter Cassette AC

1.5TR 1 Star Non Inverter Cassette AC

1.5TR 2 Star Inverter Cassette AC

2.0TR 1Star Non Inverter Cassette AC

2.0TR 2 Star Non Inverter Cassette AC

3.0TR 3 Phase Non Inverter Cassette AC

4.0TR 3 Phase Non Inverter Cassette AC

MIDEA INVERTER CASSETTE

1.5TR 3 Star Inverter Cassette AC

2.0TR 3-Star Inverter Cassette AC

3.0TR 1 Star Inverter Cassette AC

3.0TR 3 Phase Inverter Cassette AC

4.0TR 3 Phase Inverter Cassette AC

5.5TR 3 Phase Midea High Static Duct

1.5 TR(18K) Medium Static Duct

2.0 TR(24K) Medium Static Duct

3.0 TR(36K) Medium Static Duct (3 Phase)

4.2 TR(50K) Medium Static Duct (3 Phase)

Floor Standing 1.5TR 1 STAR

Floor Standing 1.5TR 2 STAR

2.0 TR(24K) Floor Standing (2 Star)

3.0 TR(36K) Floor Standing (3 Phase)

4.0 TR(48K) Floor Standing (3 Phase)

2.5HP, 3.5HP, 4 HP, 5 HP, 6 HP MINI VRF SMALL COOLING SERIES

3HP, 4HP, 4.5HP, 5HP, 6 HP MINI VRF SMALL HEAT PUMP SERIES

8HP, 10HP, 12HP, 14HP, 16 HP, 18HP, ,20HP, 22HP, 24HP, 26HP, 28HP, 30HP, 32HP VC PRO 3 Ø COOLING SERIES SMALL
